PRODUCT DESCRIPTION

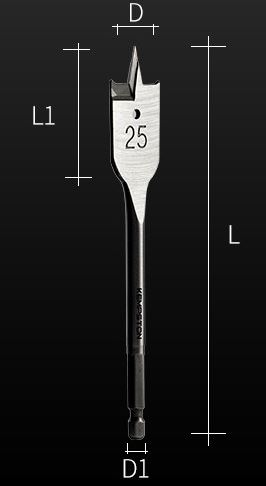

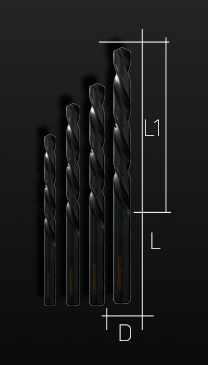

Drill Bits Specifications Marks
D (mm)	Working Diameter
L1 (mm)	Working Length
L (mm)	Overall Length

There are various types of tool bits used for drilling holes in different materials. The most common ones are twist bits, straight bits, and countersink bits. Twist bits create a spiral flute in the material being drilled, which reduces friction and allows for faster drilling. They are commonly used for masonry, metal, and wood. Straight bits, on the other hand, have a flat surface and are used for drilling precise holes in plastic, glass, and ceramics. Countersink bits are designed to fit into the material being drilled and create a perfectly smooth and flush hole.

They are typically used for wood, plastic, and metal. Each type of bit has its own unique features and advantages, making it important to choose the right one for the job at hand.

Bachle drilling bits include for you with the selected 3 types of working conditions:

Bachle wood drilling bits

Bachle metal drilling bits

Bachle masonry drilling bits

Now we are presenting you the specifications of wood drilling bits in hot sales.

Wood Drilling Bits

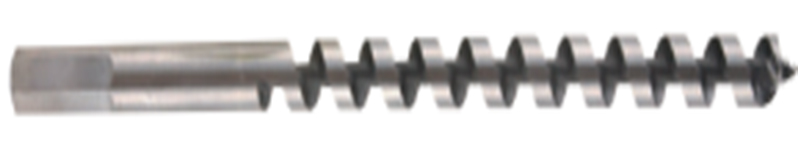

1. Standard Wood Auger bits

Part #	Diameter (mm)	Overall Length (mm)	Working Length (mm)	Part #	Diameter (mm)	Overall Length (mm)	Working Length (mm)
(200mm Length Type)				(250mm Length Type)
76401101	6	200	130	76401111	6	250	180
76401102	8	200	130	76401112	8	250	180
76401103	10	200	130	76401113	10	250	180
76401104	12	200	130	76401114	12	250	180
76401105	14	200	130	76401115	14	250	180
76401106	16	200	130	76401116	16	250	180
76401107	18	200	130	76401117	18	250	180
76401108	20	200	130	76401118	20	250	180
76401109	22	200	130	76401119	22	250	180
76401110	24	200	130	76401120	24	250	180

Part #	Diameter (mm)	Overall Length (mm)	Working Length (mm)	Part #	Diameter (mm)	Overall Length (mm)	Working Length (mm)
(400mm Length Type)				(450mm Length Type)
76401121	8	400	330	76401133	8	450	380
76401122	10	400	330	76401134	10	450	380
76401123	12	400	330	76401135	12	450	380
76401124	14	400	330	76401136	14	450	380
76401125	16	400	330	76401137	16	450	380
76401126	18	400	330	76401138	18	450	380
76401127	20	400	330	76401139	20	450	380
76401128	22	400	330	76401140	22	450	380
76401129	24	400	330	76401141	24	450	380
76401130	26	400	330	76401142	26	450	380
76401131	28	400	330	76401143	28	450	380
76401132	30	400	330	76401144	30	450	380

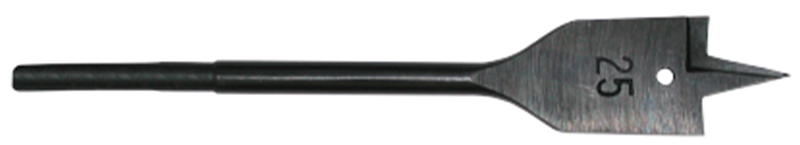

2. Standard Flat Wood spade bits

Part #	D-Diameter (mm)	L-Overall Length (mm)	L1-Working Length (mm)
76401201	6	150	125
76401202	8	150	125
76401203	10	150	125
76401204	12	150	125
76401205	13	150	150
76401206	14	150	125
76401207	16	150	125
76401208	18	150	125
76401209	20	150	125
76401210	22	150	125
76401211	24	150	125
76401212	25	150	125
76401213	26	160	130
76401214	28	160	130
76401215	30	160	130
76401216	32	160	130
76401217	35	160	130
76401218	36	160	130

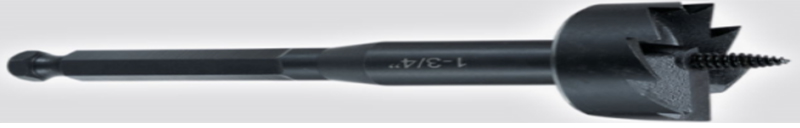

3. Wood Forstner bits

Part #	Diameter (mm)	Overall Length (mm)	Working Length (mm)
76401301	25mm	125	25
76401302	28mm	125	25
76401303	32mm	125	25
76401304	35mm	125	25
76401305	38mm	125	25
76401306	45mm	125	25
76401307	51mm	125	30
76401308	54mm	125	30
76401309	57mm	125	30
76401310	65mm	125	30
76401311	76mm	125	30

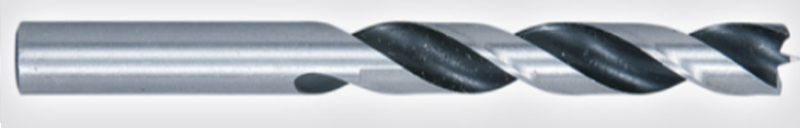

4. Standard 3 Brad Point Wood bits

Part #	Diameter (mm)	Overall Length (mm)	Working Length (mm)
76401401	3	60	30
76401402	4	75	43
76401403	5	85	50
76401404	6	95	58
76401405	6	315	150
76401406	7	110	70
76401407	8	115	73
76401408	8	315	150
76401409	9	125	80
76401410	10	135	85
76401411	10	315	150
76401412	12	155	100
76401413	12	315	150
76401414	14	170	120
76401415	14	315	150
76401416	16	180	130
76401417	16	315	150
76401418	18	200	140
76401419	18	335	150
76401420	20	200	140
76401421	20	335	150

5. Tips for choose wood drilling bits

1. Bit material: The most common materials for woodworking bits are steel, tungsten carbide, and cobalt. Consider the type of wood you will be working with and choose a bit material that is durable and resistant to wear.

2. Bit size: The size of the bit you need will depend on the thickness of the material you are drilling. In general, use a smaller bit for thinner materials and a larger bit for thicker materials.

3. Shank length: The shank of the bit refers to the length of the metal tube that connects the bit to the drill. Choose a shank length that is appropriate for the job you are doing. Longer shanks can provide more power but may be harder to control, while shorter shanks offer better control but less power.

4. Blade design: There are two main types of blade designs: full tang and threaded shank. Full tang bits have the entire length of the bit enclosed in the shank, which provides better strength and durability. Threaded shank bits have the shank that connects to the bit threaded, making them easier to change or disassemble when necessary.

5. Coating: Some woodworking bits come with a coating to help prevent rusting or corrosion. Look for bits with durable coatings such as titanium nitride or chromium vanadium.

6. Price: Woodworking bits can vary widely in price, so consider your budget when choosing a set. While more expensive bits may be of higher quality, they may not necessarily be necessary for all projects.

7. Ergonomics: Consider the shape and weight of the bit to ensure comfortable and controlled use. Some bits may have ergonomic grips or other features to improve comfort and control.

8. Application: Different types of woodworking bits are designed for specific applications. For example, there are slotted bits for flush-trimming edges, countersink bits for creating precise recesses, and dovetail bits for cutting intricate joints. Make sure to choose a bit that is appropriate for the task at hand.

Please feel free to reach our sales representatives for further details suggestion for your tools and parts.
