Bachle Masonry Drilling Bits
SEND INQUIRY
PRODUCT DESCRIPTION

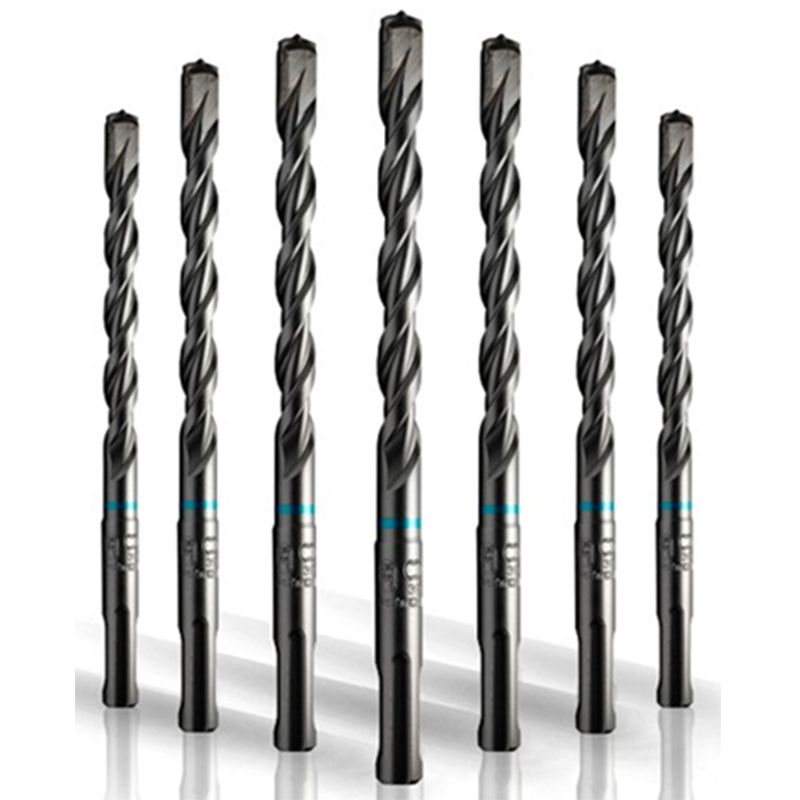

BACHLE brand masonry drilling bits are specialized drill bits designed for drilling into masonry materials such as brick, stone, and concrete. These drill bits are made of high-speed steel (HSS) or cobalt steel and have a tapered shank that allows them to penetrate the material with minimal resistance.

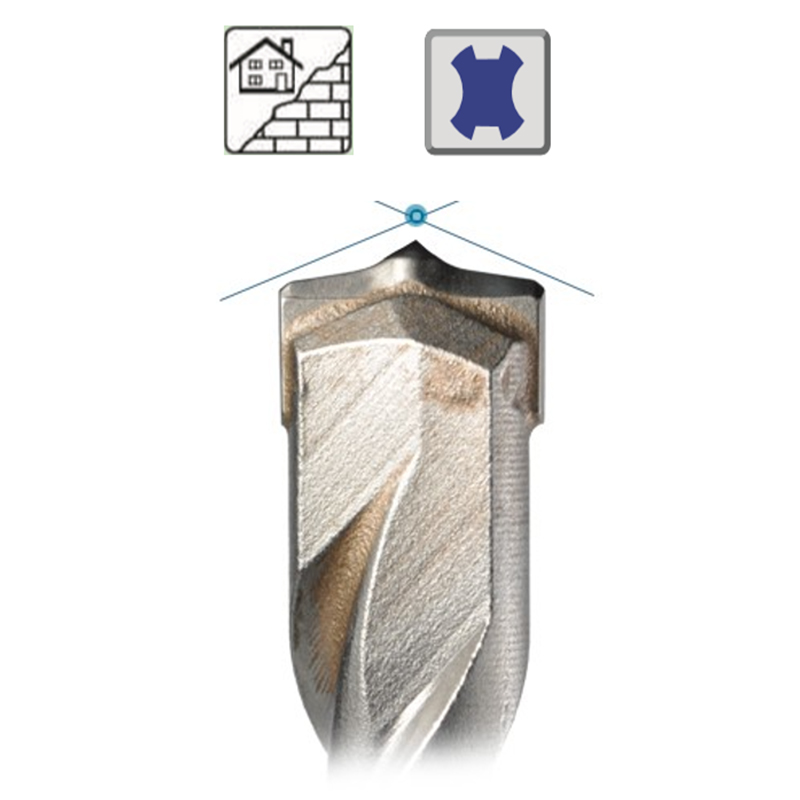

The design of masonry drilling bits is optimized for efficient and accurate drilling in hard materials. The tip of the bit is typically sharpened to provide a clean and precise hole, while the shank is tapered to increase its strength and reduce friction. The shank can also be heat-treated to improve its wear resistance and longevity.
There are several types of masonry drilling bits available, including twist drill bits, spade drill bits, and countersink drill bits. Twist drill bits are used for general drilling tasks, while spade drill bits are designed for cutting and shaping holes in brick or stone. Countersink drill bits are used to create a flat surface on the edge of a hole, which is necessary when installing wood or other materials.
Hereby we specifically introduce you the SDS plus type drill bit matching with BOSCH hammer drills.
SDS Plus type drill bits
|
Part # |
Diameter (mm) |
Overall Length (mm) |
Working Length (mm) |
|
76401601 |
4 |
110 |
50 |
|
76401602 |
5 |
110 |
50 |
|
76401603 |
5 |
160 |
100 |
|
76401604 |
5.5 |
110 |
50 |
|
76401605 |
6 |
110 |
50 |
|
76401606 |
6 |
160 |
100 |
|
76401607 |
6 |
210 |
150 |
|
76401608 |
6.5 |
110 |
50 |
|
76401609 |
6.5 |
160 |
100 |
|
76401610 |
8 |
110 |
50 |
|
76401611 |
8 |
160 |
100 |
|
76401612 |
8 |
210 |
150 |
|
76401613 |
8 |
460 |
400 |
|
76401614 |
10 |
110 |
50 |
|
76401615 |
10 |
160 |
100 |
|
76401616 |
10 |
210 |
150 |
|
76401617 |
10 |
350 |
300 |
|
76401618 |
10 |
450 |
400 |
|
76401619 |
11 |
160 |
100 |
|
76401620 |
12 |
160 |
100 |
|
76401621 |
12 |
210 |
150 |
|
76401622 |
12 |
260 |
200 |
|
76401623 |
12 |
360 |
300 |
|
76401624 |
12 |
450 |
400 |
|
76401625 |
13 |
160 |
100 |
|
76401626 |
14 |
160 |
100 |
|
76401627 |
14 |
210 |
150 |
|
76401628 |
14 |
260 |
200 |
|
76401629 |
14 |
360 |
300 |
|
76401630 |
14 |
450 |
400 |
|
76401631 |
15 |
160 |
100 |
|
76401632 |
16 |
160 |
100 |
|
76401633 |
16 |
210 |
150 |
|
76401634 |
16 |
310 |
250 |
|
76401635 |
16 |
450 |
400 |
|
76401636 |
18 |
200 |
150 |
|
76401637 |
18 |
450 |
400 |
|
76401638 |
20 |
200 |
150 |
|
76401639 |
20 |
300 |
250 |
|
76401640 |
20 |
450 |
400 |
|
76401641 |
22 |
250 |
200 |
|
76401642 |
22 |
450 |
400 |
|
76401643 |
24 |
250 |
200 |
|
76401644 |
24 |
450 |
400 |
|
76401645 |
25 |
250 |
200 |
|
76401646 |
25 |
450 |
400 |
|
76401647 |
26 |
250 |
200 |
|
76401648 |
26 |
450 |
400 |
How to choose an apporiate masonry drill bit?
When it comes to choosing high-quality masonry drilling bits, there are several factors to consider. Here are some tips to help you select the best quality bits for your needs:
1. Material: The material of the drill bit is one of the most important factors to consider. High-speed steel (HSS) is a popular choice for masonry drilling bits because it is durable and can withstand heavy wear and tear. Other materials, such as cobalt steel or titanium, may also be suitable for certain applications.
2. Shape: Different shapes of drill bits are designed for specific tasks. For example, twist drill bits are good for general drilling, while spade drill bits are better for cutting and shaping holes in brick or stone. Countersink drill bits are useful for creating flat surfaces on the edge of a hole.
3. Size: The size of the drill bit should be chosen based on the size of the hole being drilled. Larger bits will be needed for larger holes, while smaller bits may be sufficient for smaller holes. It's important to choose a bit that is compatible with the drilling machine being used.
4. Durability: The durability of the drill bit is an important consideration. High-quality bits should be able to withstand heavy use without breaking or becoming dull. Look for bits that are heat-treated to improve their wear resistance and longevity.
5. Price: Drill bits can vary widely in price depending on their quality and features. While it's important to invest in a good quality bit, it's also important to find one that fits within your budget.
By considering these factors, you can select high-quality masonry drilling bits. And we recommend you BACHLE brand that will provide reliable performance and long lifespan in your drilling works.
